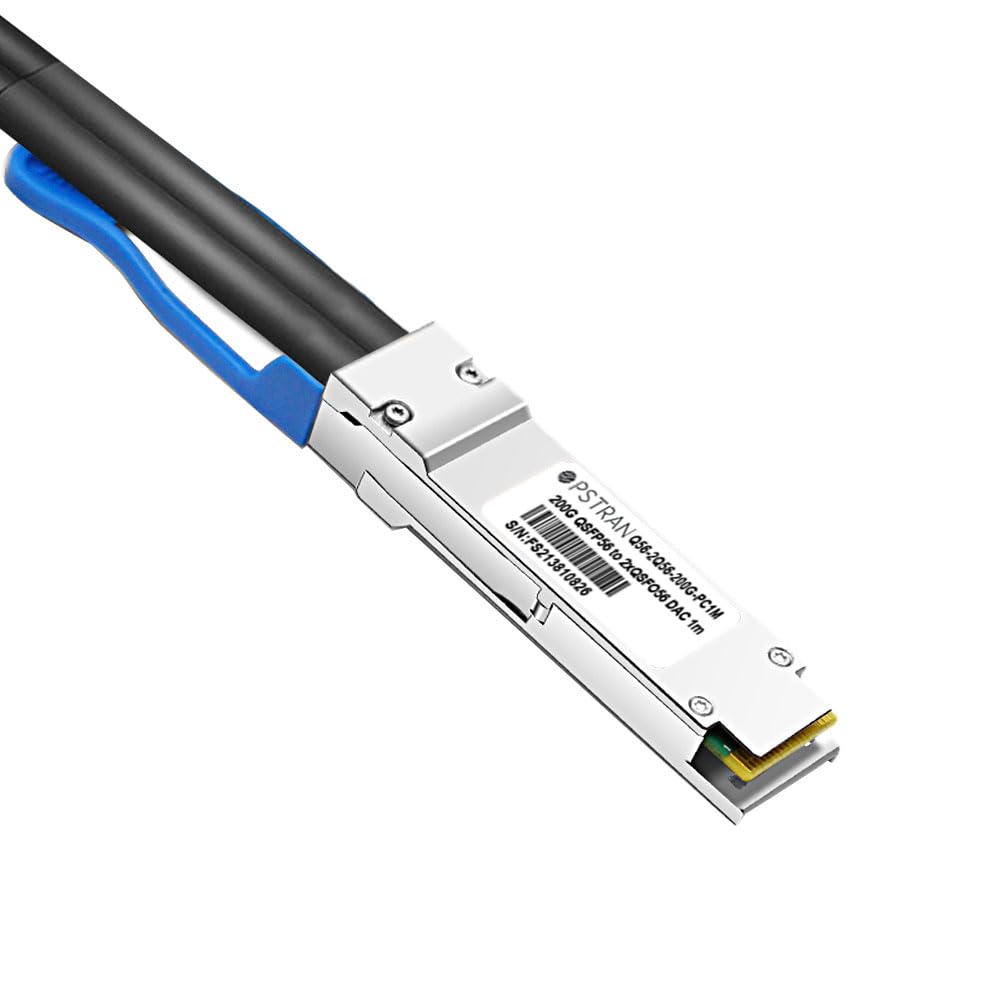

1m (3ft) 200G QSFP56 to 2X 100G QSFP56 InfiniBand HDR Passive Direct Attach Copper Breakout Cable Compatible with NVIDIA/Mellanox MCP7H50-H001R30 for Quantum Switches and ConnectX-6 HCA

ThIS is an 200Gb/s QSFP56 to two 100Gb/s QSFP56 InfiniBand HDR Direct Attached Copper dual breakout cable. Using the Quad Small Form Factor Pluggable 56 (QSFP56) and contains four high-speed electrical copper pairs, each operating at data rates of up to 50Gb/s. This cable is compliant with QSFP56 MSA (Multi-Source Agreement) and IEEE 802.3cd standards. DACs offer the lowest latency, so are widely used in data centers to connect servers and GPU compute systems to the top-of-rack (TOR) switches and link spine-to-super-spine switches inside racks over short cable lengths. DACs are also used to create InfiniBand storage fabrics with hard-disk-drive (HDD) and flash memory subsystems. Featuring a simple design and minimal components, DAC cables offer the lowest-cost, lowest-latency, and near-zero-power connections for high-speed links. They enhance port bandwidth, density, configurability, and reduce power requirements in supercomputers and hyperscale systems.

• This is an 200Gb/s QSFP56 to two 100Gb/s QSFP56 InfiniBand HDR Direct Attached Copper dual breakout cable.it is Qualified for InfiniBand HDR End-to-end Systems
• Tested and Verified by the Original, Perfectly Compatible with NVIDIA QM8700 Devices. We owns compatibility LAB facilities to meet the EEPROM coding and writing requirements with various brands of the latest and advanced networking equipments to ensure the compatibility.
• Lowest-latency, Low Insertion Loss, Low Crosstalk, High-speed Interconnect.Simplifies Patching and Offers a Cost-effective Way for Short Links
• 4x 50G-PAM4 to Dual 2x 50G-PAM4, Compliant with QSFP56 MSA, IEEE 802.3cd
• Minimum Bend Radius 39mm for Flexible Routing
