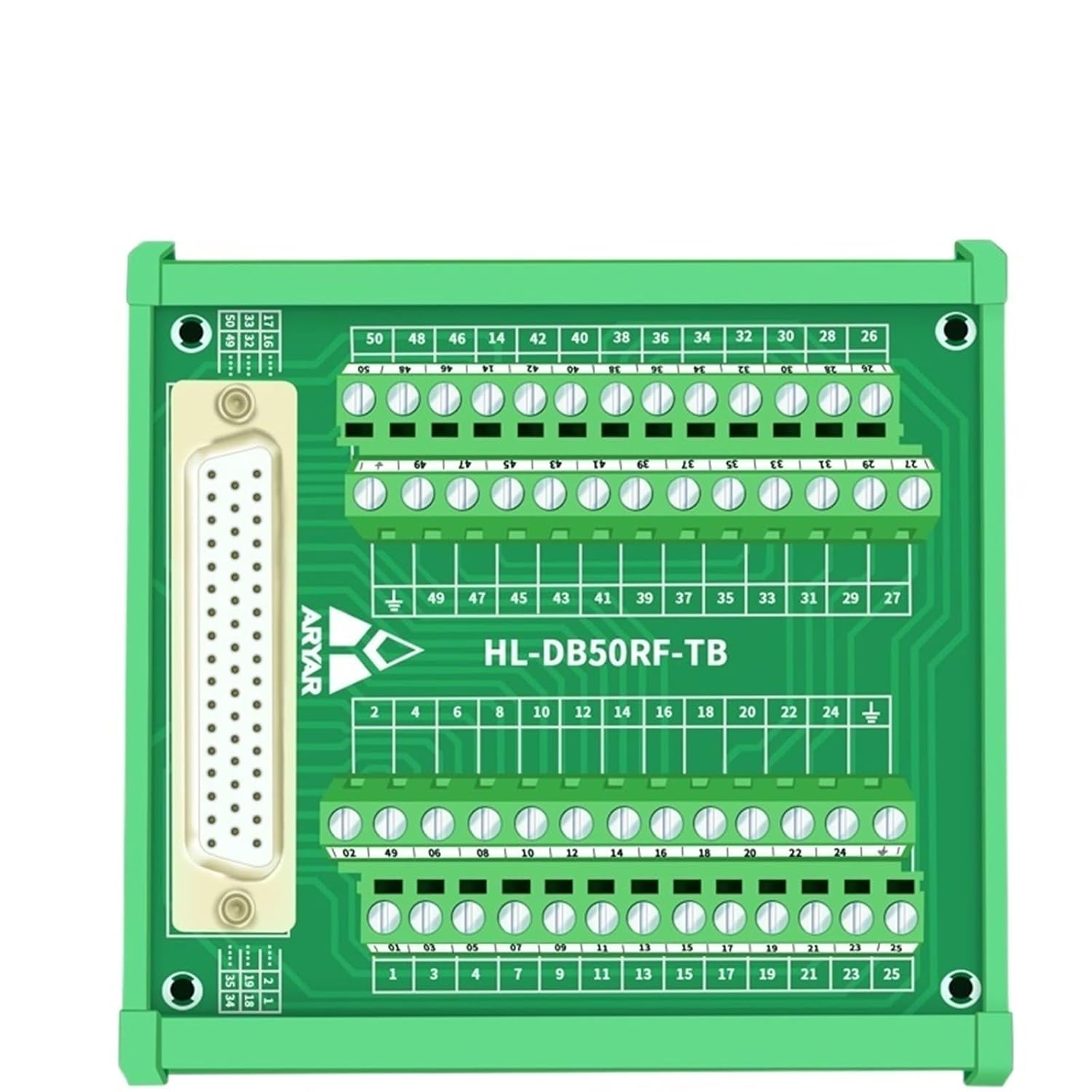

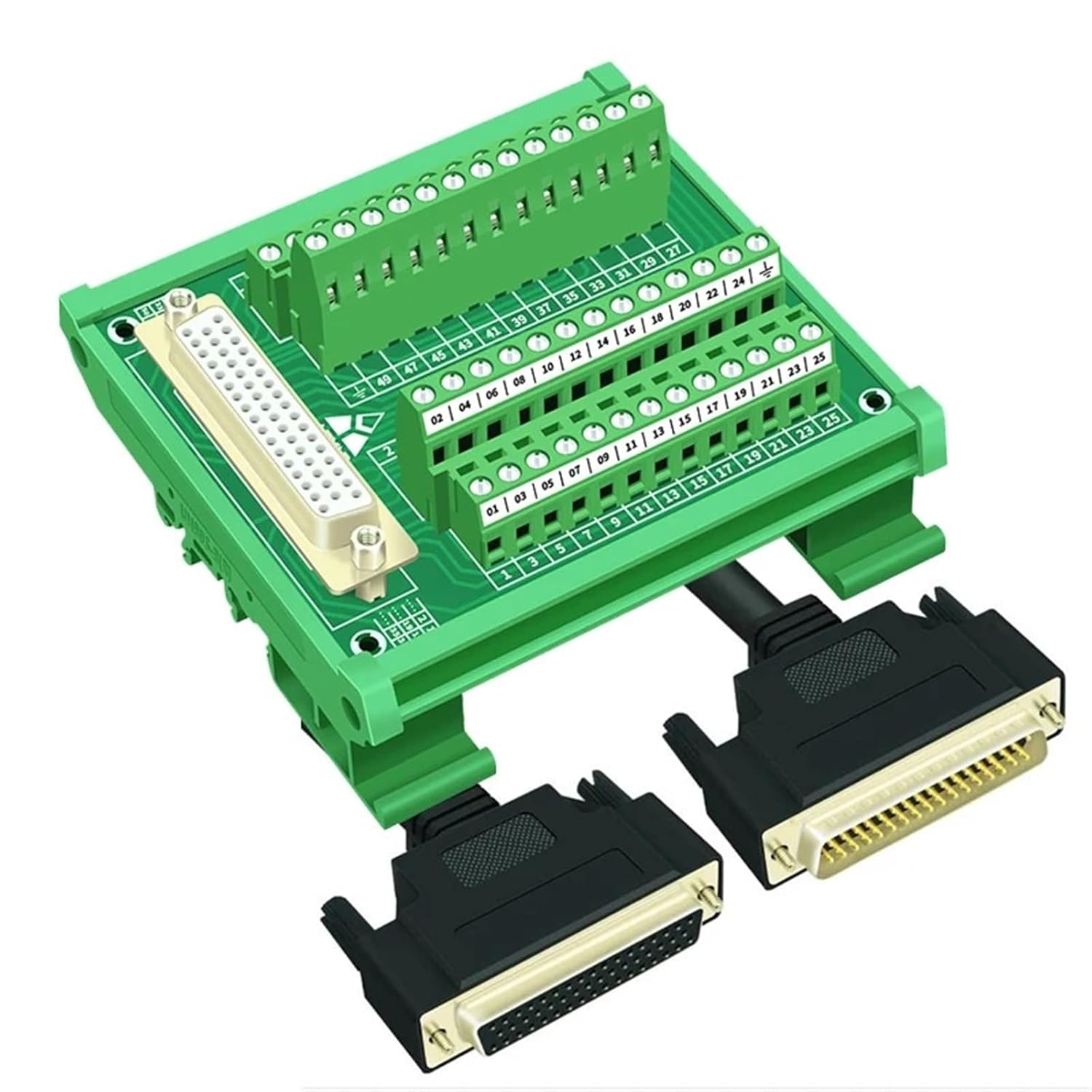

1PCS DB50 Male Din Rail Module Terminal Block Adapter Converter PCB Board Breakout 3 Row with Shell(DB50 F IO Cable 1M)
Product details
| Management number | 220372493 | Release Date | 2026/05/03 | List Price | $43.00 | Model Number | 220372493 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Terminal BlocksDin Rail Mount DB50 Male Interface Module.D-SUB DB50 male header connector.Pitch 5.08mm screw terminal block.Din rail mountable - for width 35 / 32 / 15mm rails.Din mount case can be taken apart for panel mount use. PCB housing/carrier.FR-4 fiber glass PCB, dual copper layers.External dimensions: 105*96*53mm(W x L x H). , never used.Rated voltage: 60V.Rated current: 1A / per pin.Operating Temperature: -20ºC to 50ºCTerminal block specifications:Wire range - 26-16AWG.Strip length - 5mm.Screws - M2,steel,Cr3+ Zn plated. - 0.2Nm (1.7Lb-In.).Pin header and Cage - Brass.==========Model Number : HL-DB50-RMF-TBColor : Greenconnector : D-Sub DB50Gender : MaleExternal Size : 105*107*53mmis_customized : YesProtection Level : IP54Type : D-SUB
- Terminal Blocks
- 1PCS DB50 Male Din Rail Module Terminal Block Adapter Converter PCB Board Breakout 3 Row With Shell
| Color | DB50 F IO Cable 1M |
|---|---|
| Gauge | 1.0 |
| Model | EIUWWVT |
| Pitch | 1 Inches |
| Brand Name | EIUWWVT |
| Part Number | EIUWWVT |
| Manufacturer | EIUWWVT |
| Connector Type | Clamp |
| Specification Met | UL |
| Number Of Contacts | 1 |
| Item Dimensions W x H | 1"W x 1"H |
