CompX National Disc Tumbler 1-3/16" Cam Lock - Keyed Different - Master Keyed C8073-MKKD-14A

AKA: HAFELE. KEYED DIFFERENT(KD) = EACH LOCK WILL BE A DIFFERENT LOCK NUMBER. Bright Nickel Finish - Master Keyed, Keyed Different (MKKD)

• APPLICATION – For drawers, R.H.
• or L.H.
• doors with lipped/overlay construction (straight cam) or flush construction (formed cam).
• For overlay application, the combined thickness of front and frame cannot exceed the cylinder length.. OPERATION – choice of either 90° or 180° cam turn.
• Key removable in both locked and unlocked positions.. KEYING – Will key together with all other disc tumbler locks using RO3 (CompX National MPN D8785) key blank.
• MKKD Locks are keyed to Master Key E41A (CompX MPN D8799) using RO7 (CompX National MPN D8783) key blank .. PACKAGING – Supplied with two keys, trim washer, spur washer (for wood), mounting nut, two cams and two stop washers.

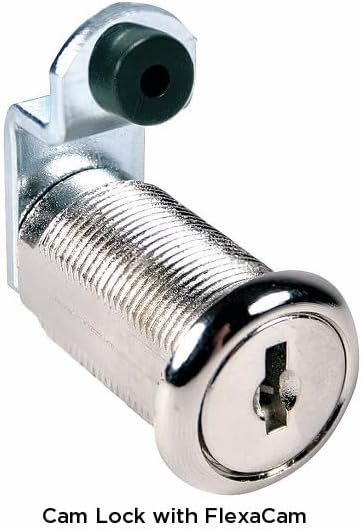

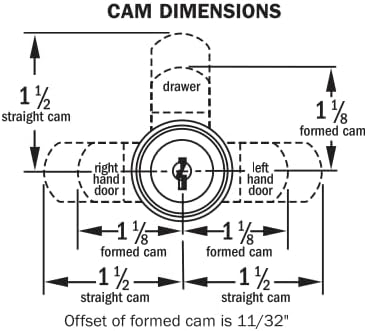

• FlexaCam spacers also supplied - please see the first image at lower left.. Straight cam measures 1 1/2" from center of mounting hole to end.
• Offset cam measures 1 1/8" from center of mounting hole to end with 11/32" offset.
• This lock can be modified to use the SlamCAM self-locking cam - see second thumbnail at left.
• C8073 Instruction Sheet.
