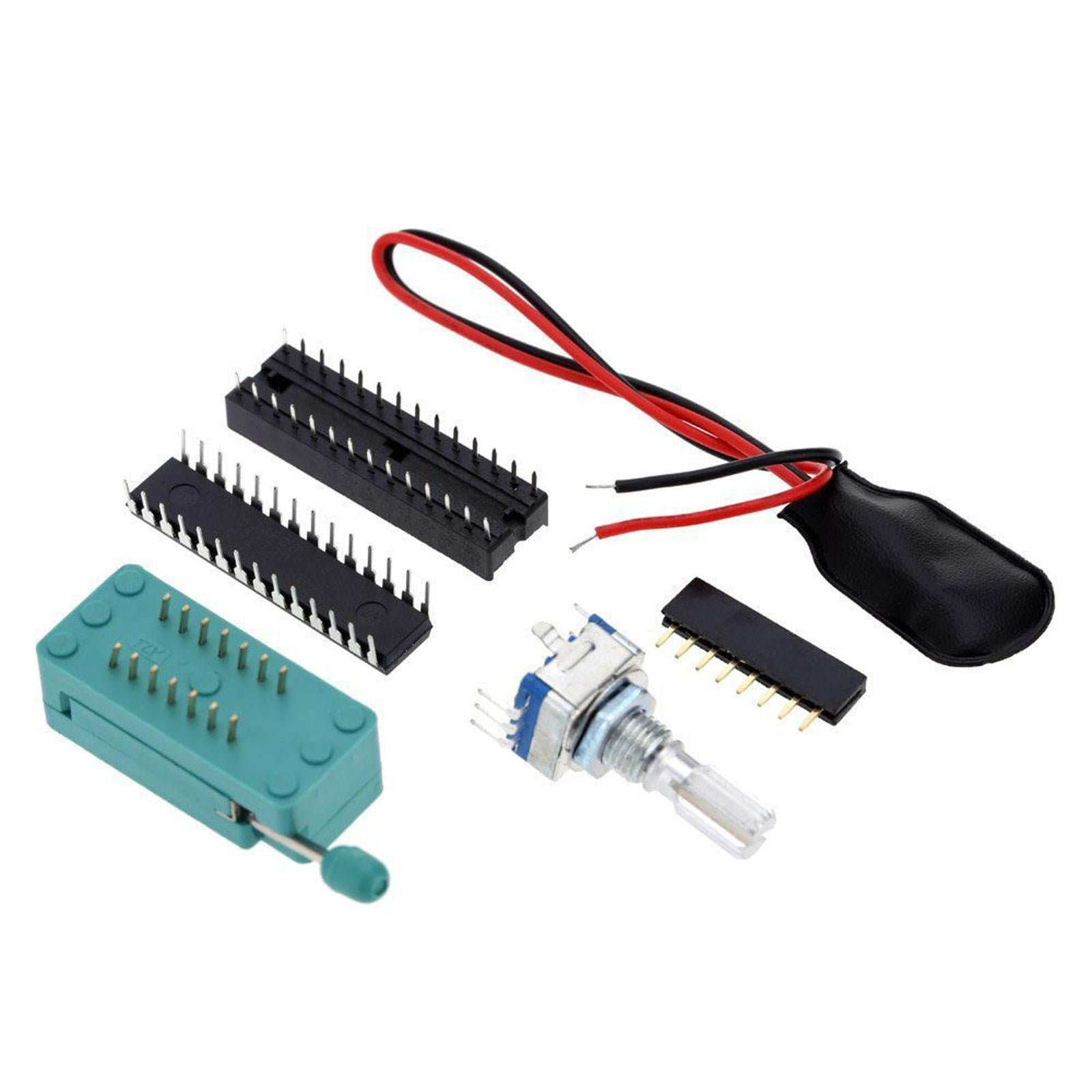

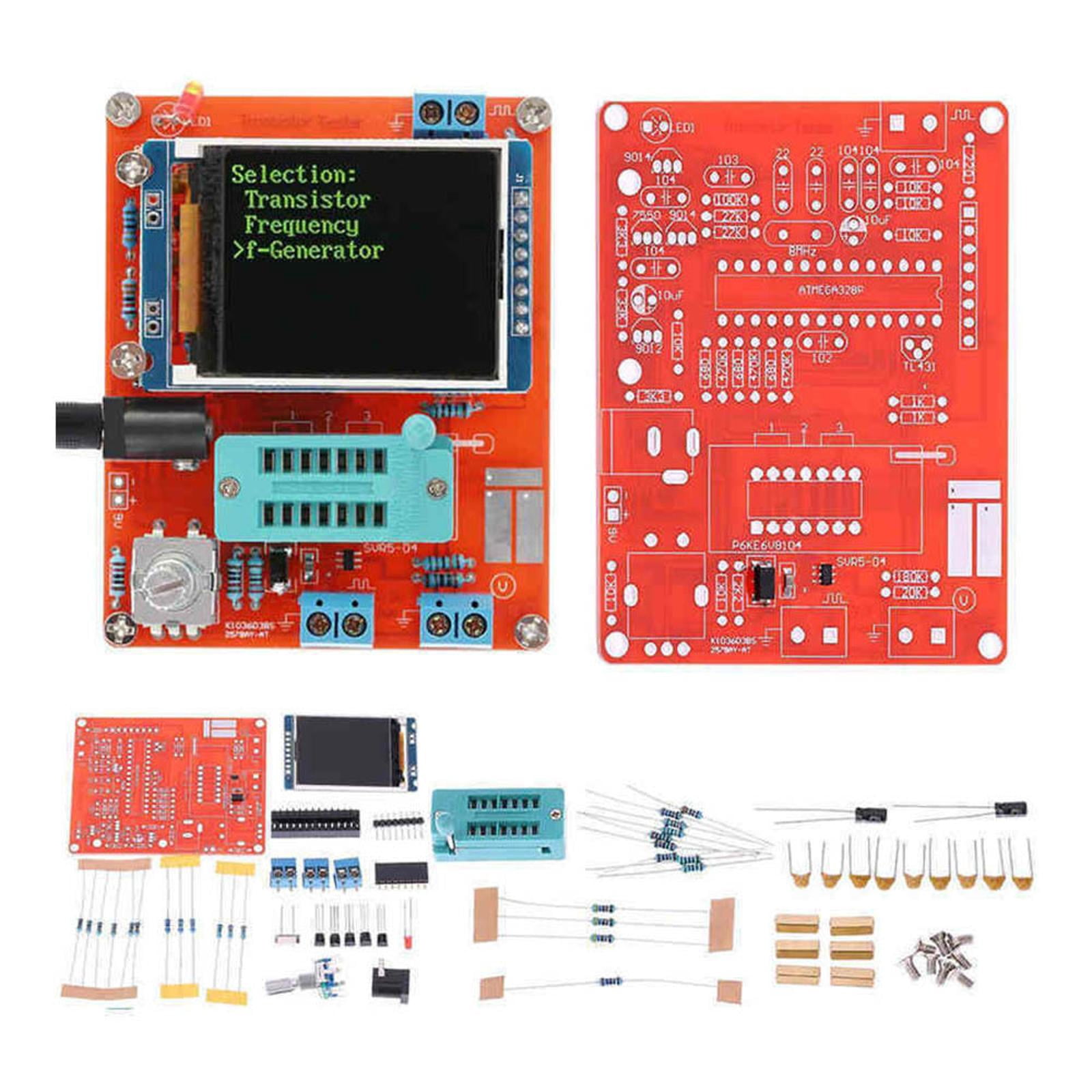

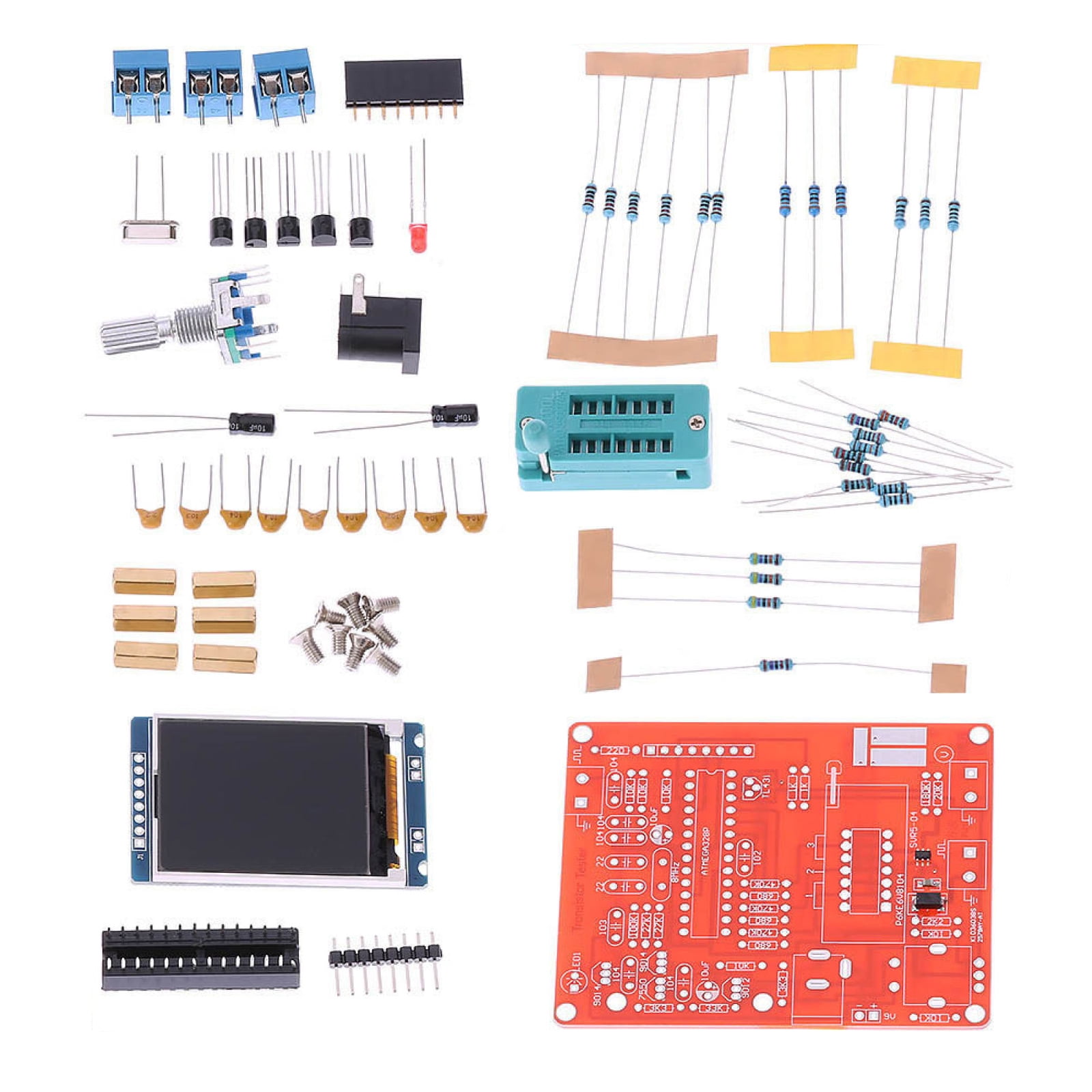

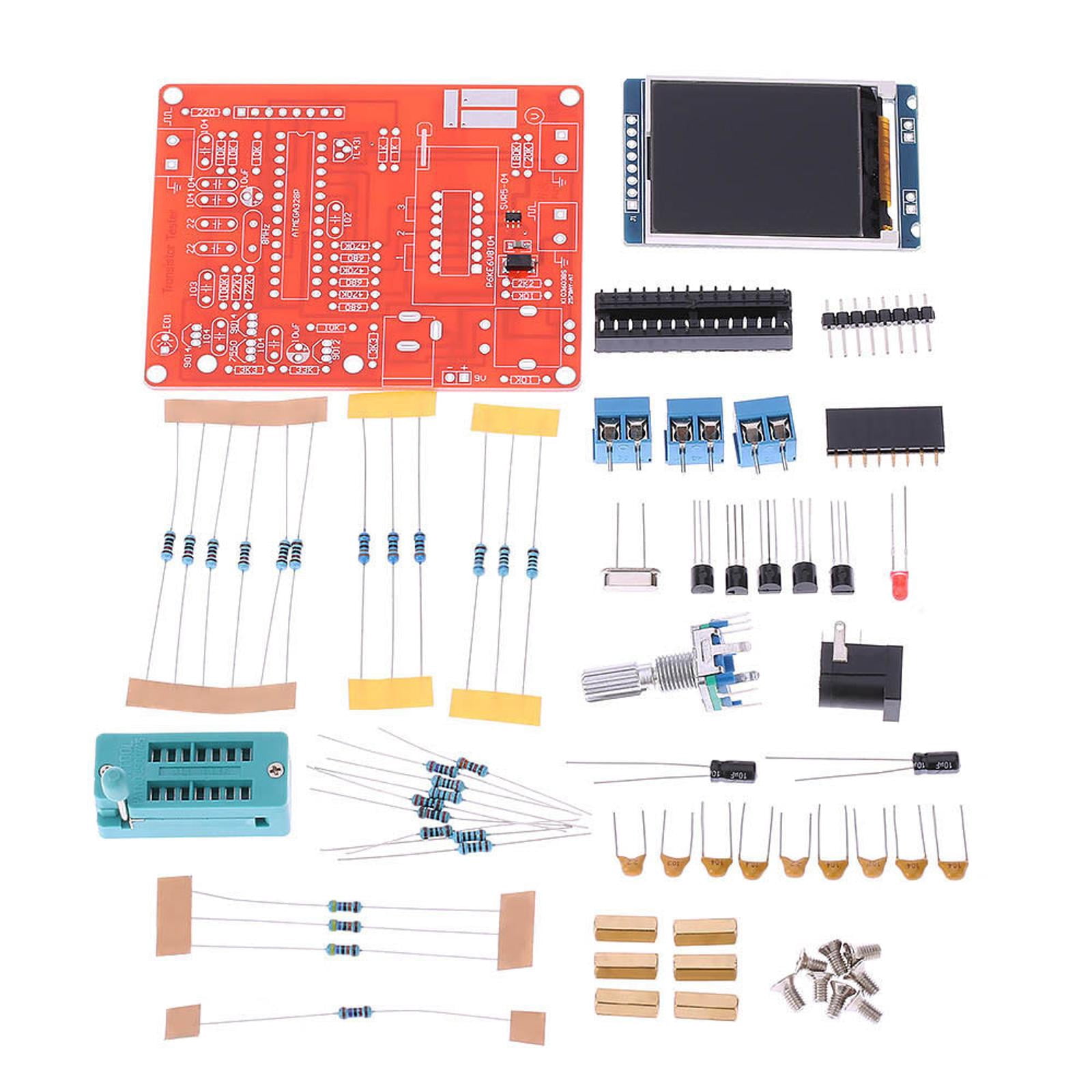

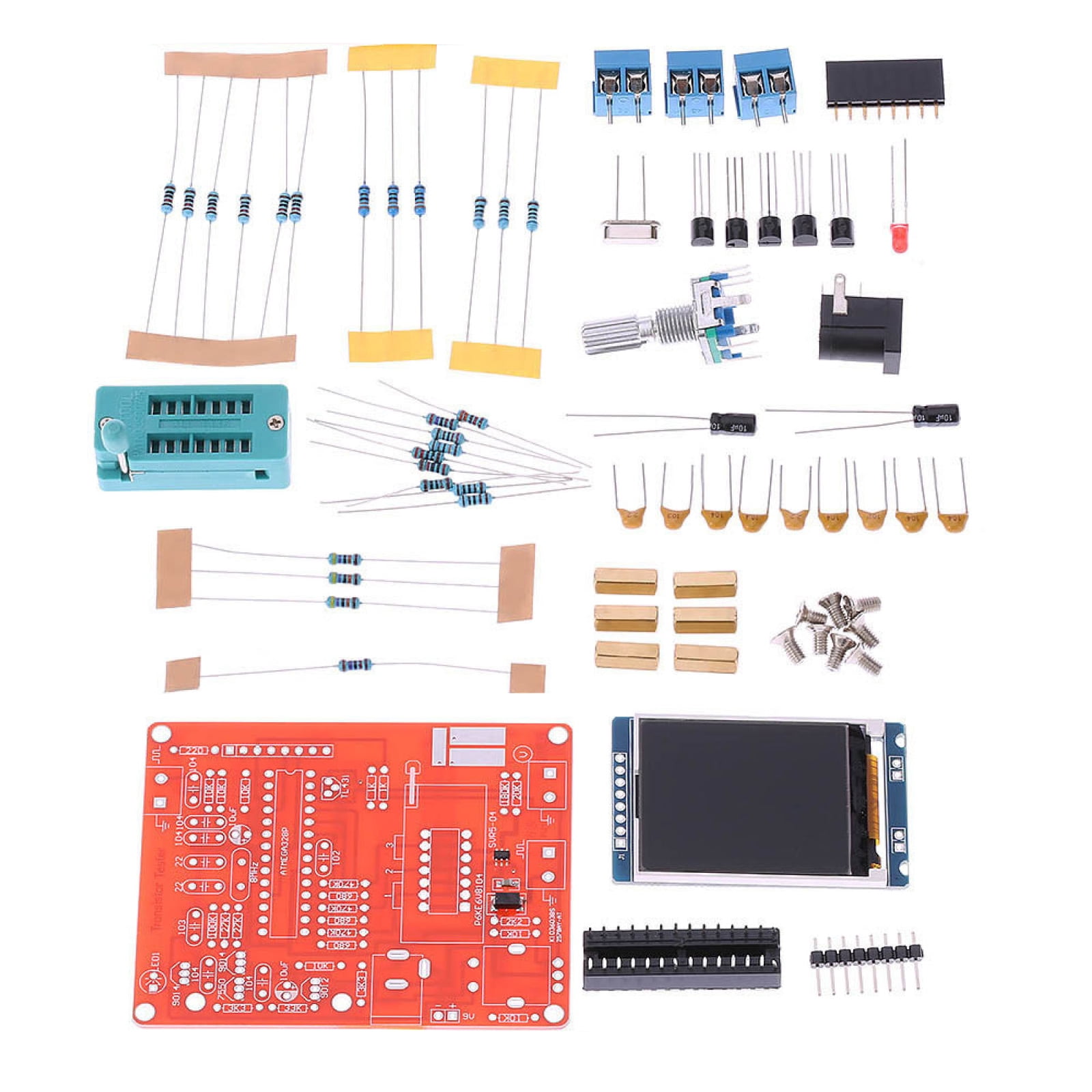

Digital LCD Multimeter DIY Kit Signal Generator Tools Electronic Measurement Testing Tools

Features:<br>Digital LCD display for easy readings, can display measured data and graphics.<br>Rotary switch control, a key measurement for convenient use.<br>Main chip is the DIP, easy for electronic enthusiasts to DIY or update the main chip.<br>Use 9V battery(not included), can also use DC power(DC 6.8-12V).<br>Automatic shutdown, shutdown current is only about 20nA.<br>Automatically detects NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR, Automatic identification of the transistor pinout.<br>Test NPN and PNP transistor common-emitter current amplification factor, the base-emitter threshold voltage, off the collector - emitter leakage current.<br>Support 2 resistors measurement, show its positive and negative, on-state voltage.<br>Resistance measurement maximum resolution 0.01Ω, can be measured up to 50MΩ.<br>Automatically test the pins of a component and show on the display.<br>Measure FET gate threshold voltage and gate capacitance.<br>For the following 2100Ω resistor while measuring its inductance measuring range from 0.01mH - 20H.<br>Can be used as signal generator and frequency meter: frequency range from 1Hz-2MHz and can generate 1%-99% PWM(pulse width modulation) signals<br><br>Specifications:<br>Type: DIY Kit<br>Display: 160*128 LCD<br>Power Supply :1 * 9V Battery(not included); DC 6.8-12V<br>Current Approx. 30mA<br>Resistance Measurement Max. 50MΩ<br>Resistance Resolution 0.01Ω<br>Capacitance Measurement 25pF~100mF<br>Capacitance Resolution 1pF<br>DC Voltage Measurement Up to 50V<br>Screen Size Approx. 3.7 * 3cm / 1.45 * 1.18in<br>PCB Size Approx. 7.8 * 6.2cm / 3.1 * 2.44in<br> <br>Package Content:<br>1 Set DIY Kits
