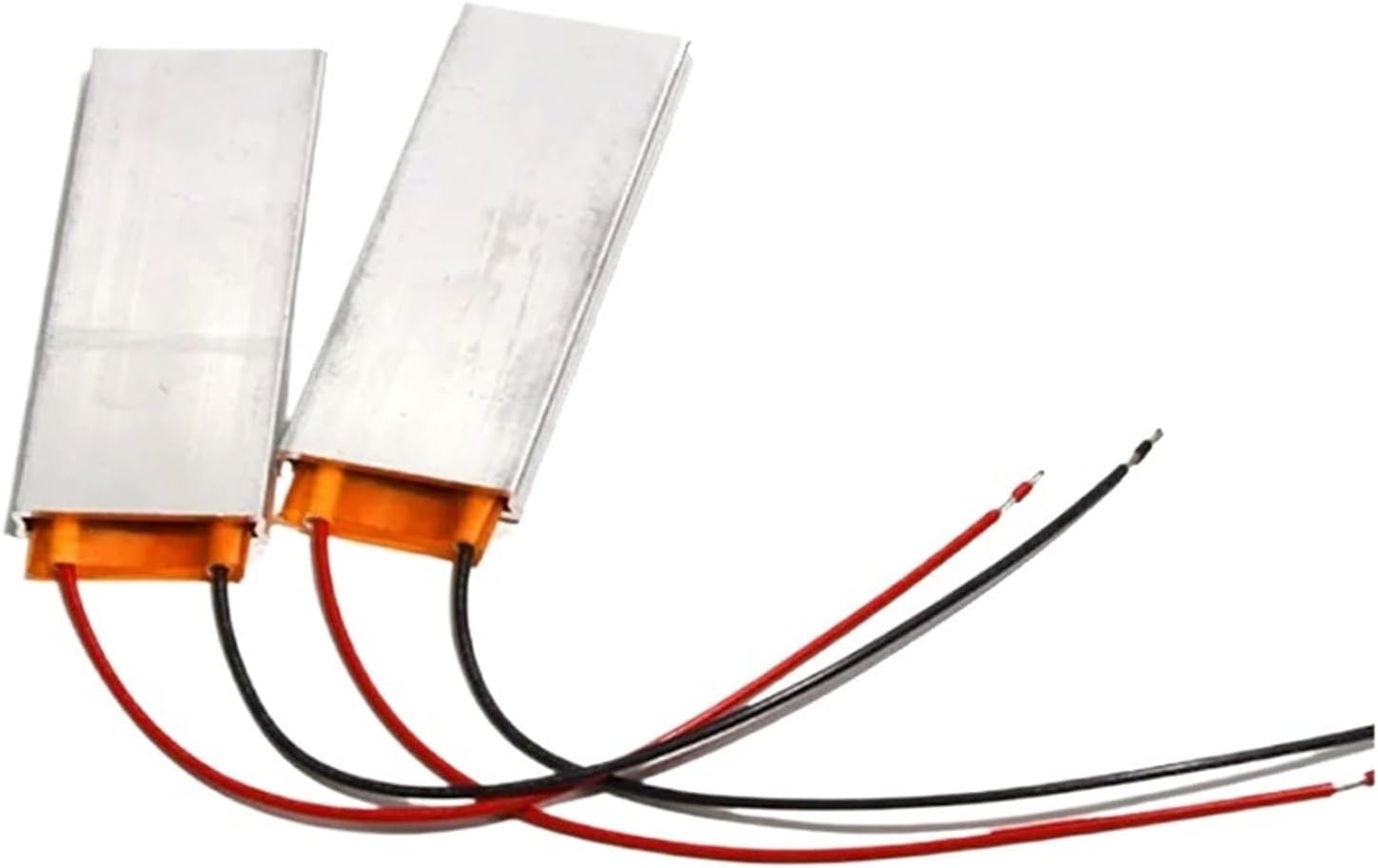

PTC Aluminum Heater Plate, 70x30x6mm, 12V/24V,50-230°C Constant Temperature Electric Heater(12V 50C 4-8W)

70x30x6MM 12V 24V 48V PTC Aluminum Heater Plate for Constant Temperature Heating 50-230 Degree Electric Thermistor1. Size:70*30*6mm (LxWxT)2.Voltage: 12V 24V3.Temperature: 50-2304.Shell Material:High Temperature Aluminum Shell5.Heat Material: PTC Thermistor6.Lead Wire Length: about 10cm7.Advantage: Can long-term dry heat, heating fast, surface insulation8.Temperature Tolerance: ±109.Package:2PCS PTC heating elementsPay attention: Power Allowance-10%~+5%1. Advantages: dry burning, energy saving, constant temperature, long life, no open flame, suitable for micro equipment low-power depyretic, preheating and damp removal.2. Power supply: directly connected to the rated voltage, AC and DC, no positive and negative poles. Taking the 12V heating element as an example, it can be connected to AC and DC 12V, and the power supply current must be greater than the maximum heating current of the heating element, otherwise the heating element cannot be bred.3. Wattage: After the PTC heating sheet is energized, the power is small to large and then small, and finally stable.Stable power is directly related to heat dissipation, fast heat dissipation, power consumption is also more, we write the maximum dissipated power, the actual use of power is less than the maximum dissipated power.Your satisfaction is our greatest pursuit

• Wide Low-Voltage Compatibility: Designed for 12V, and 24 V DC systems, making it ideal for automotive, marine, and portable power applications.
• Broad & Precise Temperature Range: Provides stable, adjustable heating from 50°C to 230°C, covering both gentle warming and high-heat requirements.
• Robust & Efficient Design: The 70x30x6mm aluminum plate ensures excellent durability and thermal conductivity for reliable, long-term performance.
• Self-Regulating & Energy-Saving: Built-in PTC technology automatically maintains temperature, enhancing safety and reducing energy consumption.
• Versatile Thermal Solution: Suitable for battery-operated heaters, scientific instruments, small machinery, and any project requiring compact, controlled DC heating.
