XOAR Titan Air TA110-15 KV80 Light Weight Pro TA110 Series Brushless Electric Motor for RC Multi-Rotor

XOAR TITAN AIR LIGHT WEIGHT PRO BRUSHLESS ELECTRIC MOTOR SERIES XOAR Titan Air Light Weight Pro Series offers all multicopters and drones manufacturers, engineers, pilots and enthusiasts the ULTIMATE performance and reliability when combined with XOAR Precision Pair Propellers, known for top quality and performance. It is the only choice for those are serious about performance and quality. ULTIMATE PROPULSION SYSTEM XOAR Titan Air TA110-15 KV80 Brushless Electric Motors are specially designed with top grade materials and tested for dynamic balance. XOAR Titan Air electric motor's high thrust/weight ratio, IP57 dust water resistant, fast heat disspation, quick response, enhanced efficiency (5-8% over same grade competition) offers the ULTIMATE balance in weight and performance for the ultimate propulsion system. SPECS KV: 80 Configuration: 36N40P Shaft Diameter: ø25mm Motor Dimension: ø110*52.5 Weight: 892g Idle current(10): 1.6A No.of Cells(Lipo): 6S-12S Max Continuous current(A): 72.3A Max continuous Power(w): 3615W internal resistance: 78mΩ Suggested Prop sizes: XOAR PJP-T-L 30x10, 32x12, 34x14, 36x12, 36x16 WHAT'S INCLUDED 1 x TA110-15 KV80 Brushless Electric Motors 1 x Propeller mounting plates 6 x M4 screws for mounting propellers*Please note test data collected in a lab environment are provided as guidelines. Acutal operating enviornmental conditions can alter the live performance of the motors.

• FEATURES: Higher Thrust/Weight Ratio, Enclosed Case IP 57 Dust& Water Resistant, Fast Heat Disspation, Enhanced Efficiency 5%-8% Over Competition, Precision Machining, Durability: Over 1000 hours, Dynamically Ballanced
• ULTIMATE PROPULSION SYSTEM: XOAR Titan Air Light Weight Pro Series offers all multicopters and drones manufacturers, engineers, pilots and enthusiasts the ULTIMATE performance and reliability when combined with XOAR Precision Pair Propellers, known for top quality and performance. It is the only choice for those are serious about performance and quality.
• THRUST OUTPUT: At 80% throttle from 8.87kg to 15.9kg

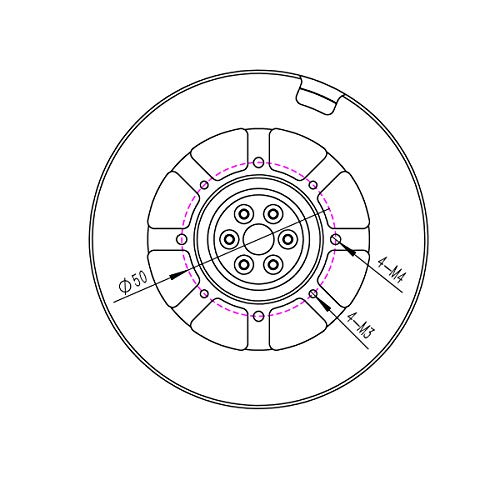

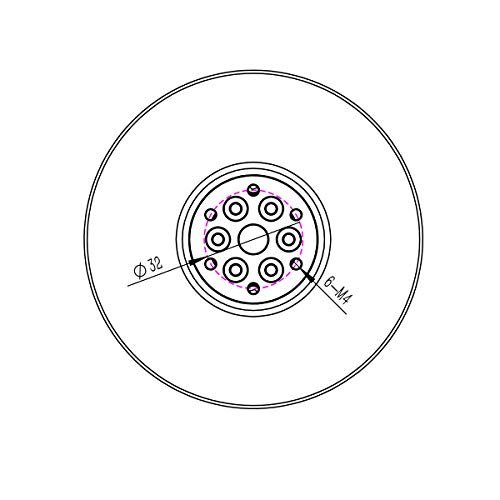

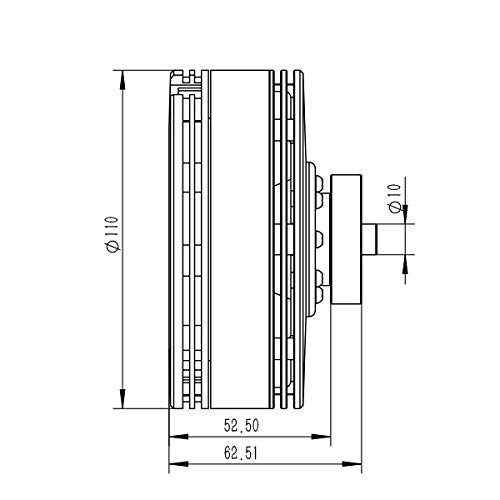

• SPEC: KV: 80 | Config: 36N40P | Shaft Diameter: 25mm | Motor Diameter: 110mm | Motor Height: 52.5mm | Weight: 892g | Propeller Mounting Holes: M4 | Propeller Mounting Holes Circular Diameter: 32mm
• SUGGESTED PROP SIZES: XOAR PJP-T-L 30x10, 32x12, 34x14, 36x12, 36x16
